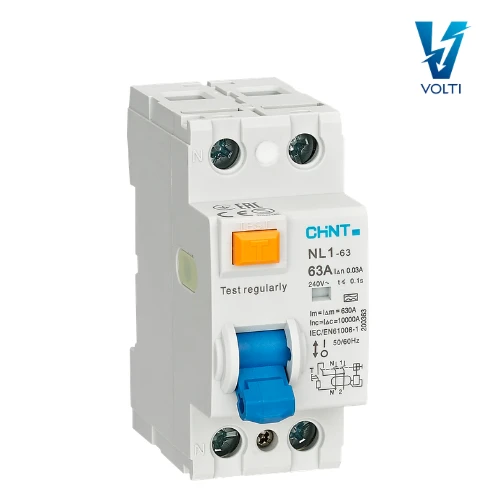

CHINT 40A 2P 6kA NL1-63
(0) 0 Reviews 0 Orders 0 Wish listed
1,031.7EGP 1,473.8EGP
Quantity:
Total price :
  (Tax : )

NL1-63 2P 40A 30mA AC 6kA DB -CHINT

Parameter

Specification

Manufacturer

CHINT Electrics

Series / Model

NL1-63

Number of Poles

2P (1P + N)

Rated Current

40 A

Rated Residual Operating Current

30 mA

Residual Current Type

Type AC

Rated Operational Voltage

230 V / 240 V AC

Rated Insulation Voltage

500 V

Rated Impulse Withstand

4 kV

Rated Conditional Short-Circuit Current

6 kA

Rated Making & Breaking Capacity

500 A

Rated Frequency

50 / 60 Hz

Compliance Standard

IEC / EN 61008-1

Terminal Capacity

Up to 25 mm²

Tightening Torque

2.5 N·m

Mounting

Standard 35 mm DIN rail

Degree of Protection

IP20

Operating Temperature

-25°C to +40°C
