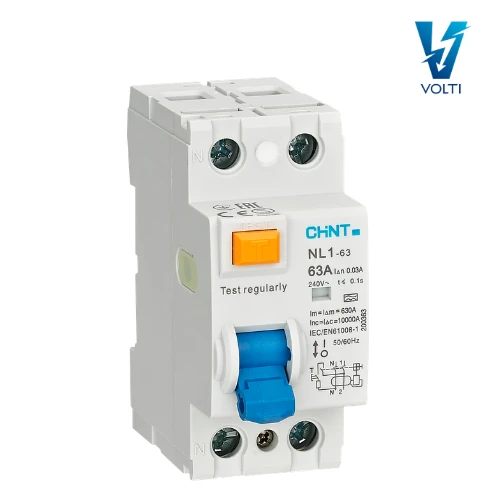

NL1-63 2P 63A 30mA AC 6kA DB –CHINT
|
Parameter |
Specification |
|
Manufacturer |
CHINT Electrics |
|
Series / Model |
NL1-63 |
|
Number of Poles |
2P (1P + N) |
|
Rated Current |
63 A |
|
Rated Residual Operating Current |
30 mA |
|
Residual Current Type |
Type AC |
|
Rated Operational Voltage |
230 V / 240 V AC |
|
Rated Insulation Voltage |
500 V |
|
Rated Impulse Withstand |
4 kV |
|
Rated Conditional Short-Circuit Current |
6 kA |
|
Rated Making & Breaking Capacity |
630 A |
|
Rated Frequency |
50 / 60 Hz |
|
Compliance Standard |
IEC / EN 61008-1 |
|
Terminal Capacity |
Up to 25 mm² |
|
Tightening Torque |
2.5 N·m |
|
Mounting |
Standard 35 mm DIN rail |
|
Degree of Protection |
IP20 |
|
Operating Temperature |
-25°C to +40°C |
