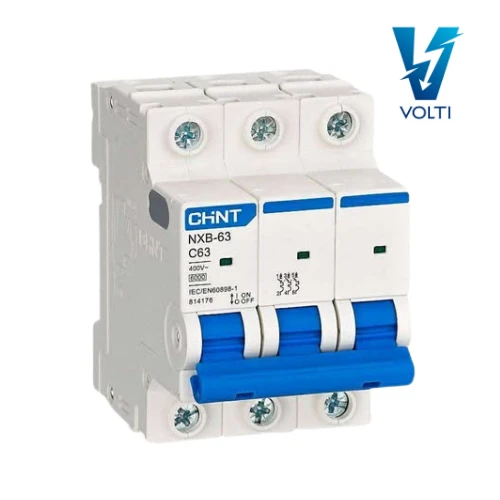

CHINT C10 3P 63S 4.5kA

Save 30%
(0)

100 In Stock

551.2EGP 385.8EGP
Quantity
Total price: 551.2EGP
Tax: 14.0EGP
Details Description

Technical Specifications: CHINT NXB-63S Miniature Circuit Breaker

Parameter Specification
Manufacturer CHINT Electrics
Series / Model NXB-63S 3P C10
Standard Compliance IEC/EN 60898-1
Number of Poles 3P (Three Pole)
Rated Current ($I_n$) 10 A
Tripping Characteristic Type C ($5\text{–}10 \times I_n$)
Rated Short-Circuit Capacity ($I_{cn}$) 4.5 kA (4,500 A)
Rated Operating Voltage ($U_e$) 400 V / 415 V AC (Three-Phase)
Rated Insulation Voltage ($U_i$) 500 V
Rated Impulse Withstand ($U_{imp}$) 4 kV
Rated Frequency 50 / 60 Hz
Terminal Capacity Rigid/flexible cable up to 25 mm² (typically wired with 1.5 mm² – 2.5 mm² for 10 A circuits)
Tightening Torque 2.5 N·m
Mounting Style 35 mm standard DIN rail (EN 50022 / TH35-7.5)
Width 54 mm (3 modules of 18 mm)
Ingress Protection IP20
Operating Temperature -35°C to +70°C
