INVT 2.2KW, 1PH, 240V Solar Pump Inverter

(0) 0 Reviews 0 Orders 0 Wish listed

5,458.6EGP ~~5,686.0EGP~~

RatedPower :

2.2 KW

Quantity:

Total price :

(Tax : )

Overview
Reviews

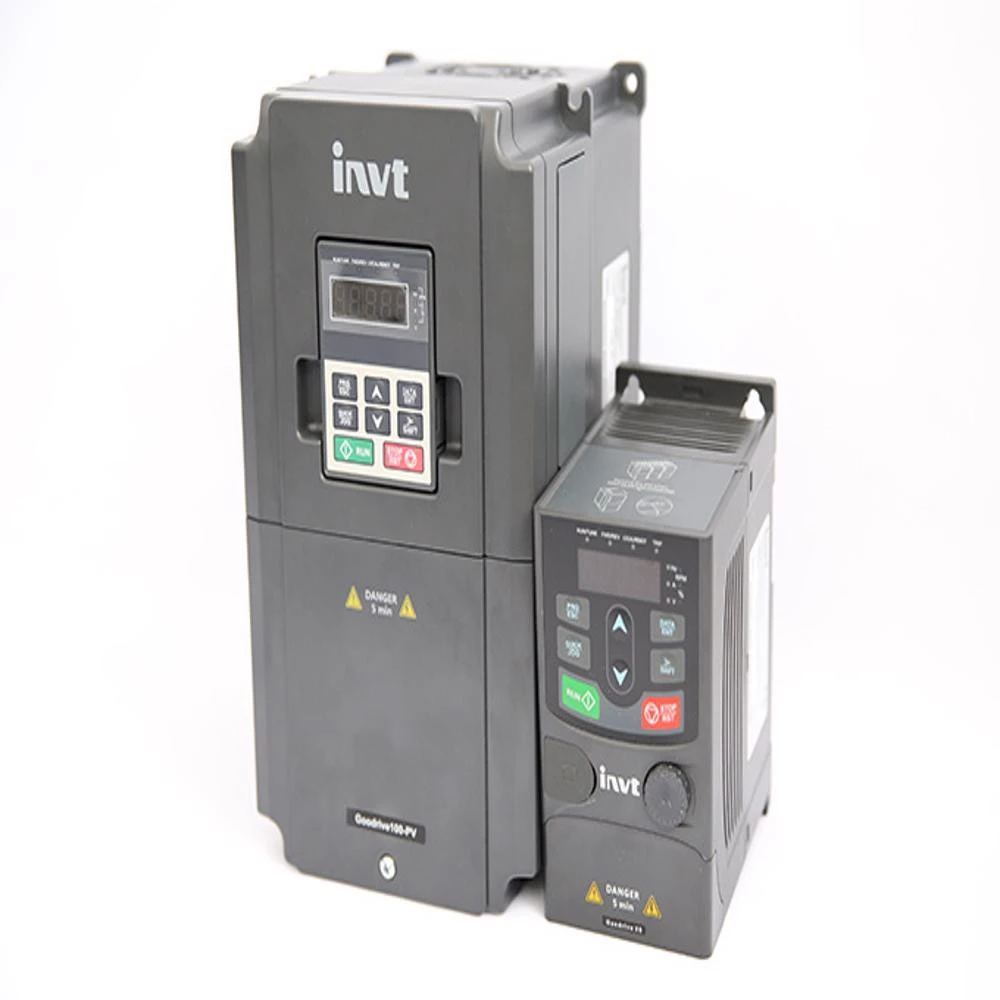

INVT GD170-2R2-SS2-PV

Rated capacity	2.2 kW/3Hp
Rated output current	6 A
Input DC voltage	200 – 450 VDC (optimal 300–380 VDC)
Output AC voltage	1 phase 0–220 V
Frequency	0–400 Hz
Overload	120%/60 seconds – 150%/10 seconds
Protection level	IP20
D	90 × 190 × 150 mm
Weight	3 kg

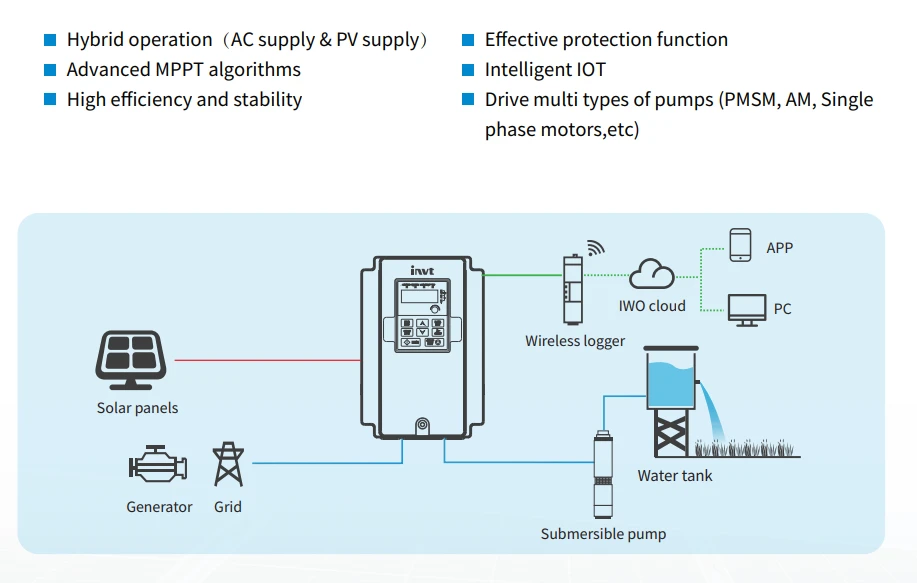

INVT GD170-2R2-SS2-PV is a power solar water pump inverter 2.2 kW, belongs to the smallest power group in the GD170-PV series. The device is specifically designed for households, small-scale agriculture and shallow well pumping systems, where low investment costs are required but high stability and performance are still needed.

Power inverter DC directly from the battery rig, algorithm integration Smart MPPT, helps optimize power extracted from sunlight. Thanks to that, the pump can operate stably even when it is cloudy or sunny, which is difficult for conventional inverters to meet. Compact design, light weight, and easy installation make the GD170-2R2-SS2-PV an excellent solution for remote areas or areas where grid power is unstable.

Smart MPPT, optimizing capacity in all sunny conditions
Soft start/stop, duct and pump protection
Integrated protection: overvoltage – low pressure – overcurrent – overheating – dry water
Automatically restart when sunny
