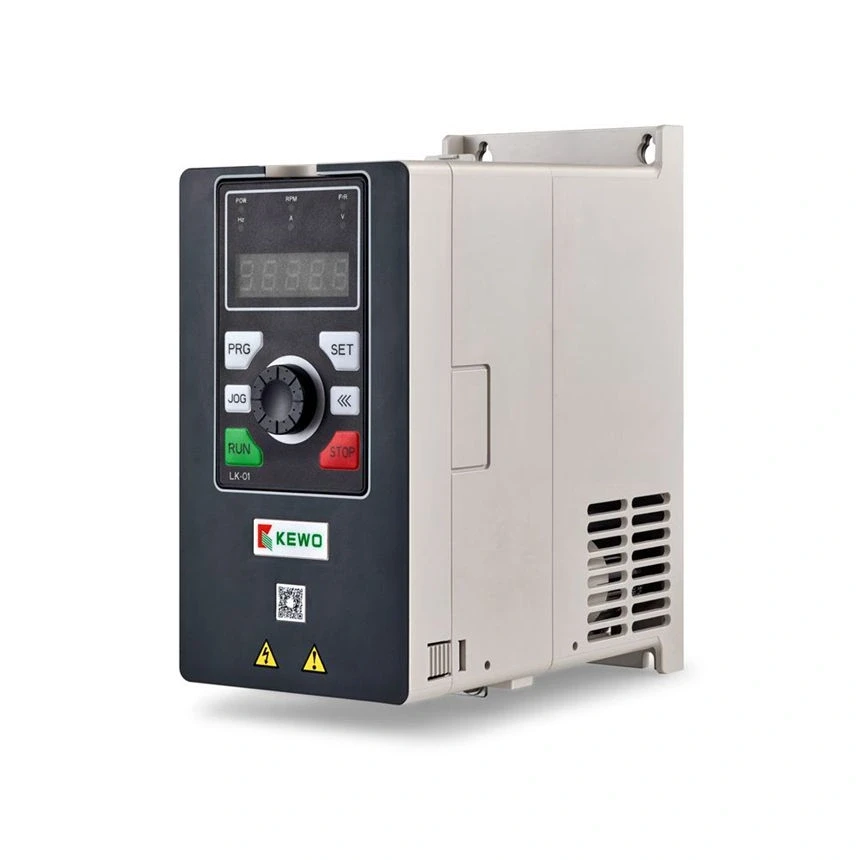

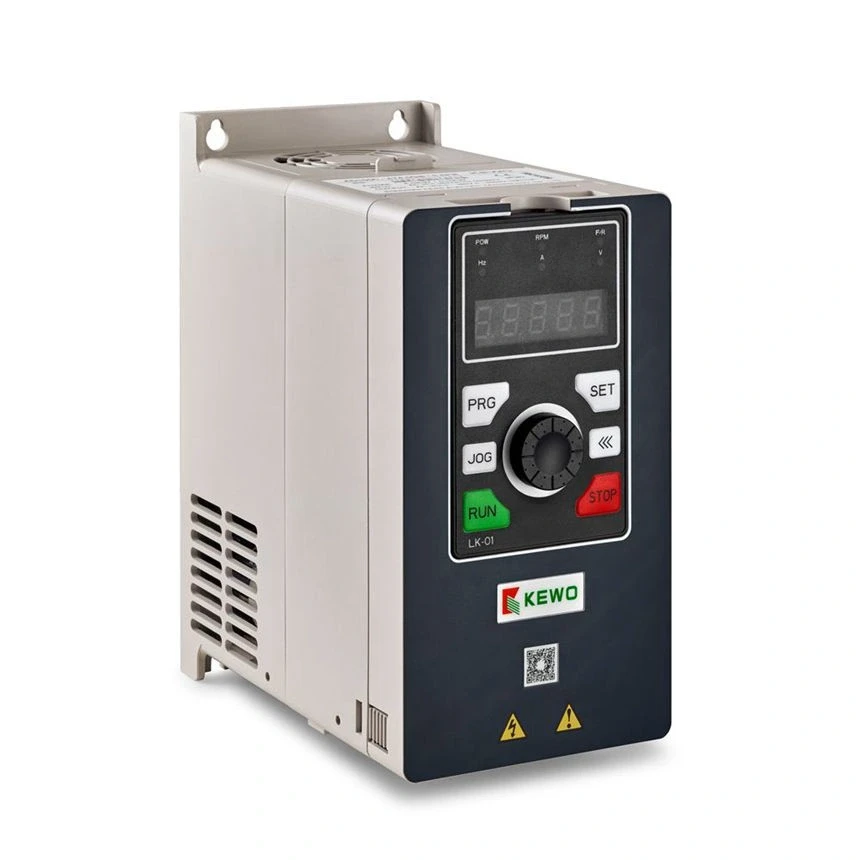

The KEWO PV1000 110KW 220A is an industrial-scale, ultra-high-capacity solar pump inverter (Variable Frequency Drive). It is built to power massive water motors, large-scale center-pivot irrigation networks, and regional water treatment stations requiring up to 150 Horsepower (150 HP).

Technical Specifications

• Power Output: 110 Kilowatts (110KW) / 150 HP.
• Current Output: 220 Amperes (220A) continuous rating, engineered to handle enormous startup current and deliver steady high-torque output for massive inductive loads.
• Input Voltage (DC/PV): Wide operational envelope from 250V to 800V DC (Max input can reach up to 900V DC). The ideal continuous running MPPT voltage under heavy load is 540V to 750V DC.
• Output Voltage (AC): Standard industrial 3-Phase 380V / 400V / 415V / 440V AC.

Solar Array Configuration Guide

Sustaining a 150 HP motor requires an extensive solar field covering a large footprint to generate a stable DC supply capable of supporting a 220A output:

1. Total Solar Array Capacity: It is highly recommended to oversize the PV array to between 143 kW and 155 kW (1.3 to 1.4 times the drive capacity) to counteract midday heat degradation and cable line resistance losses.
2. String Wiring Layout: If utilizing modern 550W panels (with an Open Circuit Voltage \(V_{oc}\) of roughly 50V per panel):
   • You will need 260 to 282 panels in total.
   • Correct Layout: Divide them into 12 or 13 parallel strings (12-13 Strings × 21 or 22 panels in series). This massive parallel combination multiplies incoming current input to safely meet the 220A demand while capping string voltages within the safe 800V DC upper limit.
