KEWO PV1000 30KW, 60A

(0) 0 Reviews 0 Orders 0 Wish listed

43,650.0EGP ~~48,500.0EGP~~

RatedPower :

30 KW

Quantity:

Total price :

(Tax : )

Overview
Reviews

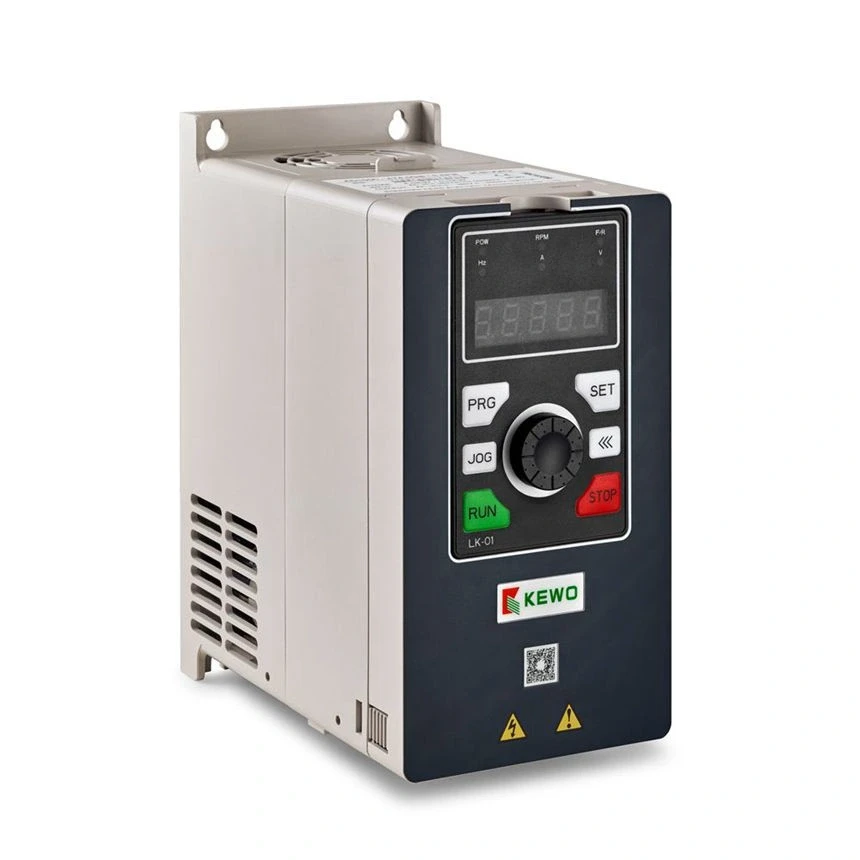

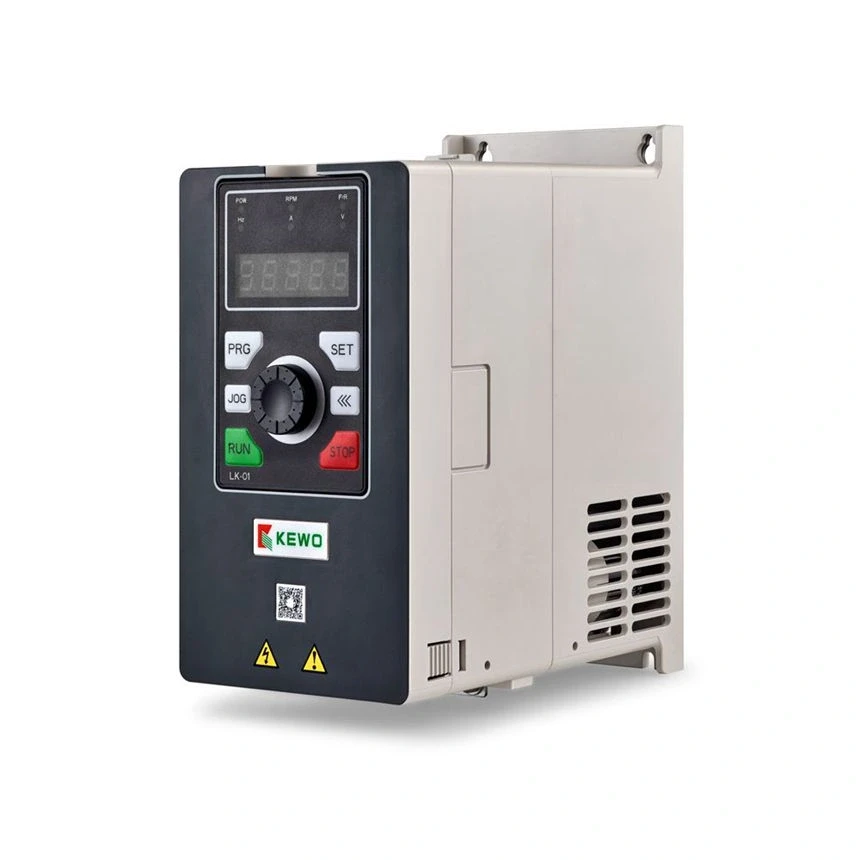

The KEWO PV1000 30KW 60A is a heavy-duty, high-capacity industrial solar pump inverter (Variable Frequency Drive). It is engineered to comfortably power massive industrial water pumps and large-scale center-pivot irrigation networks rated up to 40 Horsepower (40 HP).

Technical Specifications

Power Output: 30 Kilowatts (30KW) / 40 HP.
Current Output: 60 Amperes (60A) continuous rating, delivering the immense startup torque needed to lift high volumes of water from deep underground boreholes.
Input Voltage (DC/PV): Wide operational window from 250V to 800V DC. The ideal continuous running MPPT voltage under heavy load is 540V to 720V DC.
Output Voltage (AC): Standard industrial 3-Phase 380V / 400V / 415V AC.

Solar Array Configuration Guide

Sustaining a 40 HP motor requires a massive solar footprint. Sizing the PV array properly prevents system dropouts during low-light hours or extreme summer heat:

Total Solar Array Capacity: It is highly recommended to oversize the PV array to between 39 kW and 45 kW (1.3 to 1.5 times the inverter rating).
String Wiring Layout: If utilizing standard 550W panels (with an Open Circuit Voltage \(V_{oc}\) of roughly 50V per panel):
- You will need 72 to 80 panels in total.
- Correct Layout: Divide them into three parallel strings (3 Strings × 24 or 26 panels in series). This configuration multiplies the incoming current three times to meet the heavy amp requirement while keeping the series string voltage safely within the 800V DC ceiling.
