KEWO PV1000 7.5KW 17A

-20%

KEWO PV1000 7.5KW, 17A

Save 20%

(0)

10 In Stock

~~15,000.0EGP~~ 12,000.0EGP

RatedPower

7.5 KW

Quantity

Total price: 15,000.0EGP

Tax: incl.

Details Description

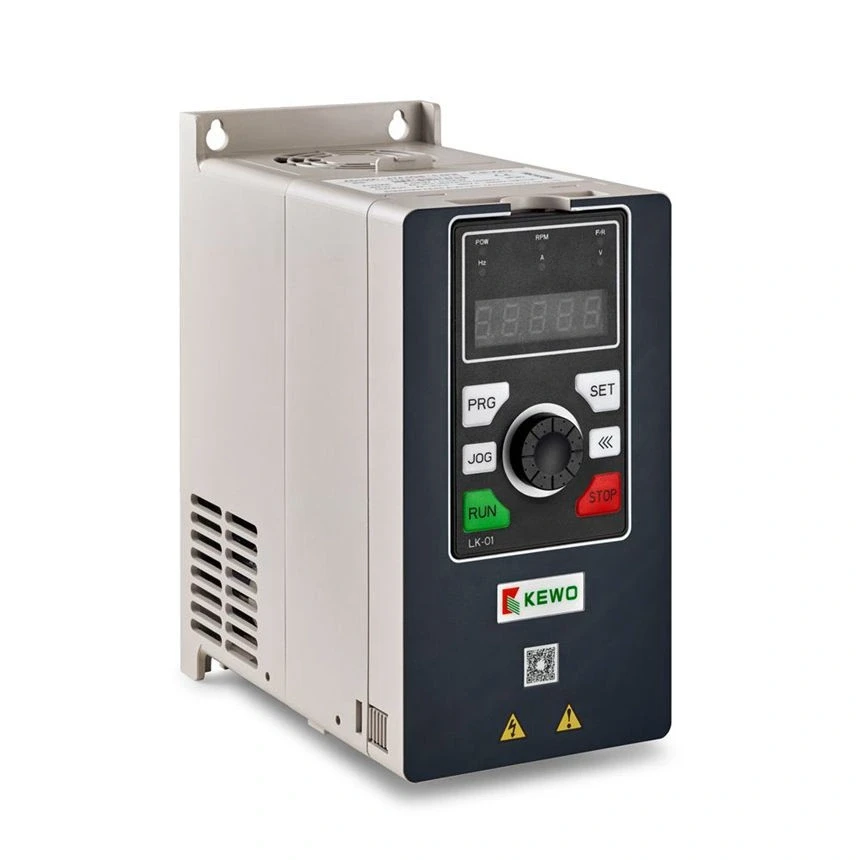

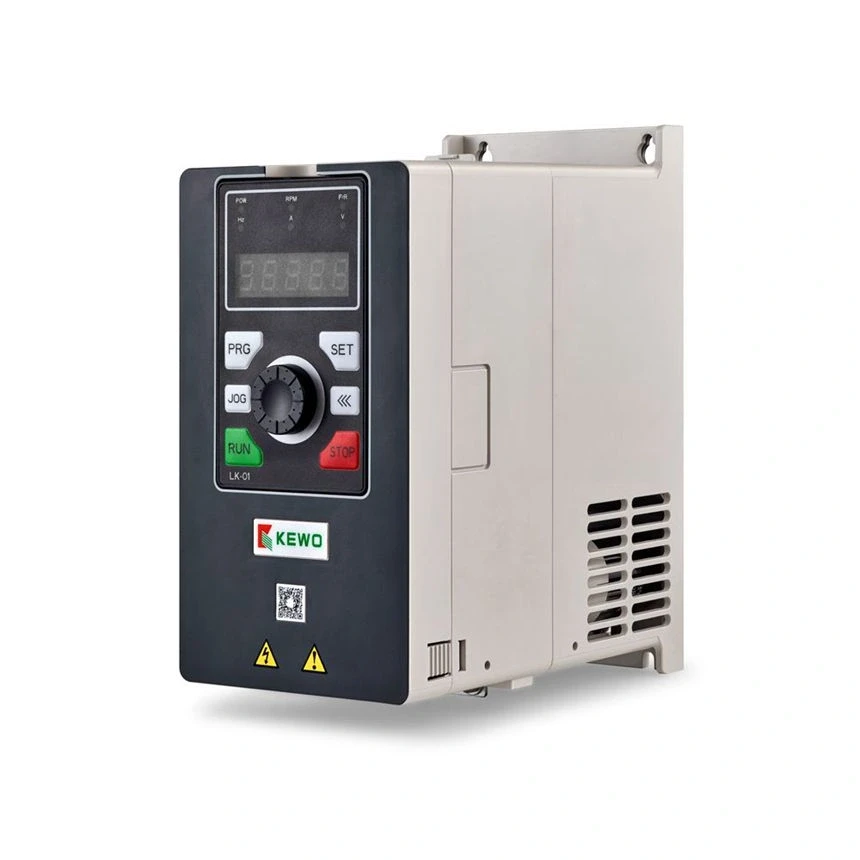

The KEWO PV1000 7.5KW 17A is a heavy-duty, industrial-grade solar pump inverter (Variable Frequency Drive). It is built to power large submersible or deep-well agricultural water pumps rated up to 10 Horsepower (10 HP). Technical Specifications Power Output: 7.5 Kilowatts (7.5KW) / 10 HP. Current Output: 17 Amperes (17A), designed to handle the heavy starting torque of 10 HP motors. Input Voltage (DC/PV): Accepts 250V to 800V DC. The ideal continuous running voltage under load is around 540V to 620V DC. Output Voltage (AC): Standard 3-Phase 380V / 400V / 415V AC. Advanced Solar Array Configuration Because a 7.5KW system requires substantial power, careful panel configuration is critical to prevent low-voltage tripping or overvoltage damage: Total Solar Array Capacity: It is highly recommended to size your solar array to 10 kW to 11 kW to offset line losses and heat degradation. String Wiring Layout: You cannot connect all panels in a single series string, as the total open-circuit voltage will exceed the 800V limit and fry the drive. The proper setup requires a parallel combination of two strings (2 Strings x 9 or 10 Panels in series) using 550W panels.

Details Description

The KEWO PV1000 7.5KW 17A is a heavy-duty, industrial-grade solar pump inverter (Variable Frequency Drive). It is built to power large submersible or deep-well agricultural water pumps rated up to 10 Horsepower (10 HP).

Technical Specifications

Power Output: 7.5 Kilowatts (7.5KW) / 10 HP.
Current Output: 17 Amperes (17A), designed to handle the heavy starting torque of 10 HP motors.
Input Voltage (DC/PV): Accepts 250V to 800V DC. The ideal continuous running voltage under load is around 540V to 620V DC.
Output Voltage (AC): Standard 3-Phase 380V / 400V / 415V AC.

Advanced Solar Array Configuration

Because a 7.5KW system requires substantial power, careful panel configuration is critical to prevent low-voltage tripping or overvoltage damage:

Total Solar Array Capacity: It is highly recommended to size your solar array to 10 kW to 11 kW to offset line losses and heat degradation.
String Wiring Layout: You cannot connect all panels in a single series string, as the total open-circuit voltage will exceed the 800V limit and fry the drive. The proper setup requires a parallel combination of two strings (2 Strings x 9 or 10 Panels in series) using 550W panels.
