KEWO PV1000 93KW, 180A

(0) 0 Reviews 0 Orders 0 Wish listed

103,500.0EGP ~~115,000.0EGP~~

RatedPower :

93 KW

Quantity:

Total price :

(Tax : )

Overview
Reviews

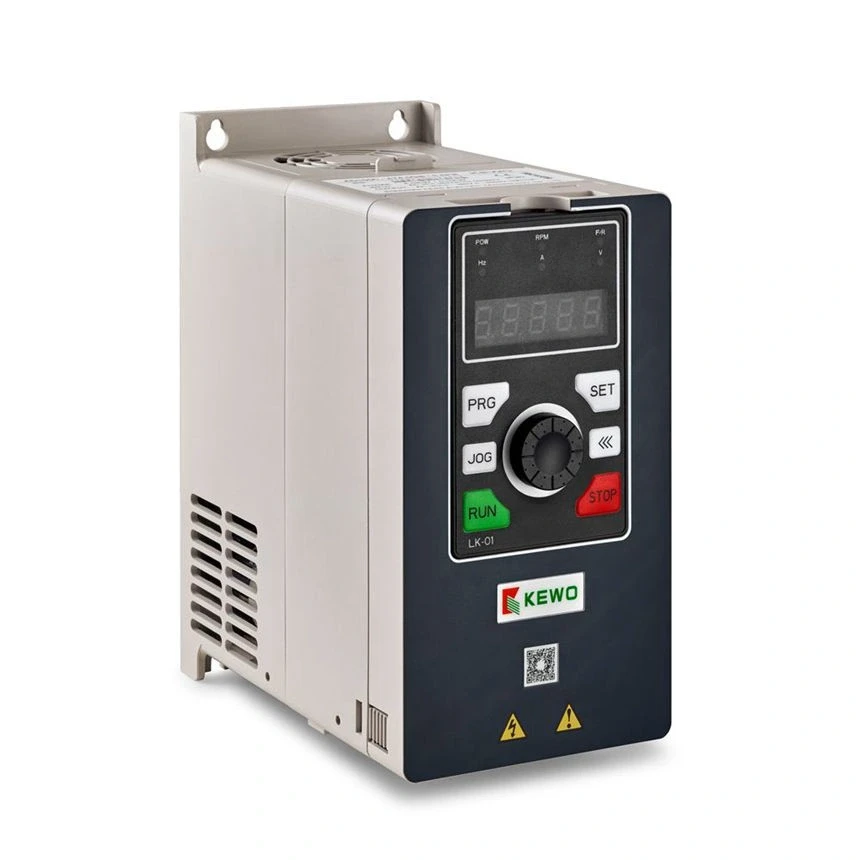

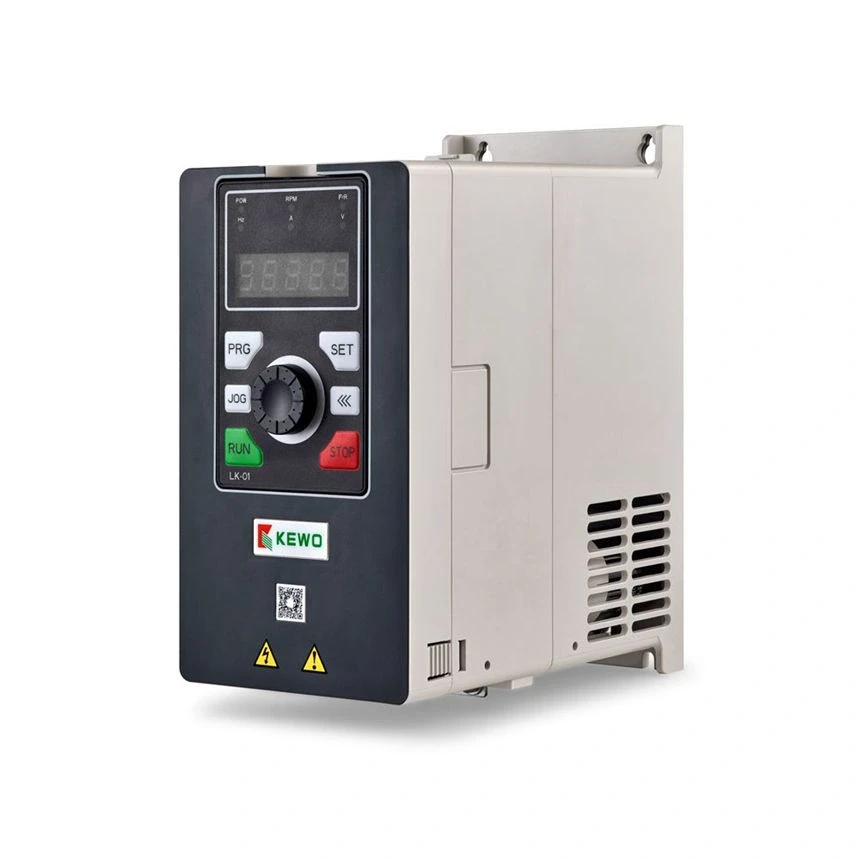

The KEWO PV1000 93KW 180A is a monumental, ultra-high-capacity industrial solar pump inverter (Variable Frequency Drive). It is engineered to command massive water motors, regional lifting stations, and high-yield large-borehole aquifers requiring up to 125 Horsepower (125 HP).

Technical Specifications

Power Output: 93 Kilowatts (93KW) / 125 HP.
Current Output: 180 Amperes (180A) continuous rating, engineered to generate massive starting torque to spin up exceptionally heavy hydraulic machinery under immediate backpressure.
Input Voltage (DC/PV): Operates within a wide envelope of 250V to 800V DC. The ideal continuous running MPPT voltage under heavy load is 540V to 720V DC.
Output Voltage (AC): Heavy industrial 3-Phase 380V / 400V / 415V AC.

Solar Array Configuration Guide

Sustaining a 125 HP motor demands an extensive, multi-string solar field setup to deliver a robust DC supply that satisfies the 180A requirement:

Total Solar Array Capacity: It is recommended to size the total PV field between 121 kW and 130 kW (1.3 to 1.4 times the drive capacity) to account for morning ramp-up, afternoon heat degradation, and line resistance losses.
String Wiring Layout: If utilizing modern 550W panels (with an Open Circuit Voltage \(V_{oc}\) of roughly 50V per panel):
- You will need 220 to 236 panels in total.
- Correct Layout: Divide them into ten parallel strings (10 Strings × 22 to 23 panels in series). This multi-parallel combination scales up your current input ten-fold to confidently meet the 180A requirement while capping string voltages safely beneath the 800V DC upper limit.
