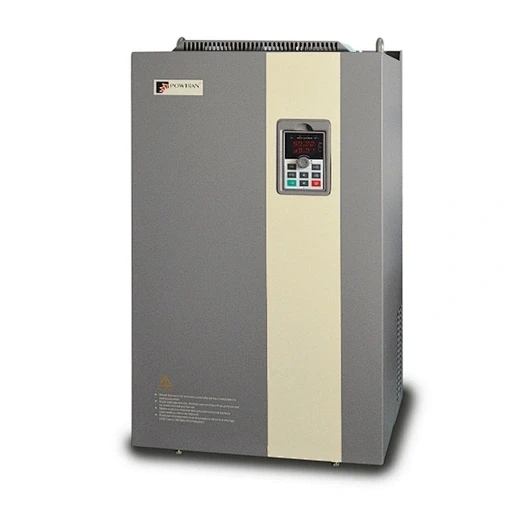

POWTRAN 7.5KW Pump Inverter

(0) 0 Reviews 0 Orders 0 Wish listed

12,750.0EGP ~~15,000.0EGP~~

RatedPower :

7.5 KW

Quantity:

Total price :

(Tax : )

Overview
Reviews

PI500A-S 7R5G3

This data specifies a Variable Frequency Drive (VFD / Inverter) manufactured by POWTRAN, designed to control the speed and power of electric induction motors or water pumps.

Key Technical Specifications

Power Rating: 7.5 Kilowatts (KW), which is equivalent to 10 Horsepower (HP).
Rated Current: 17 Amperes (A) maximum output current.
Output Voltage: Typically delivers a 3-Phase 380V–415V output to the motor.
Frequency Range: Operates from 0 Hz up to 3200 Hz depending on the specific series.

Common Product Series For This Specification

Powtran usually offers this specific power rating across two major product families:

Industrial Series (PI500 / PI550):
- Designed for general industrial applications like conveyors, fans, compressors, and CNC machinery.
- Features sensorless vector control (SVC) to maintain high torque even at very low speeds.
Solar Pumping Series (PI500A-S / PV550):
- Built specifically to run water pumps directly using DC power from solar panels.
- Includes built-in Maximum Power Point Tracking (MPPT) to maximize water output based on sunlight intensity.
