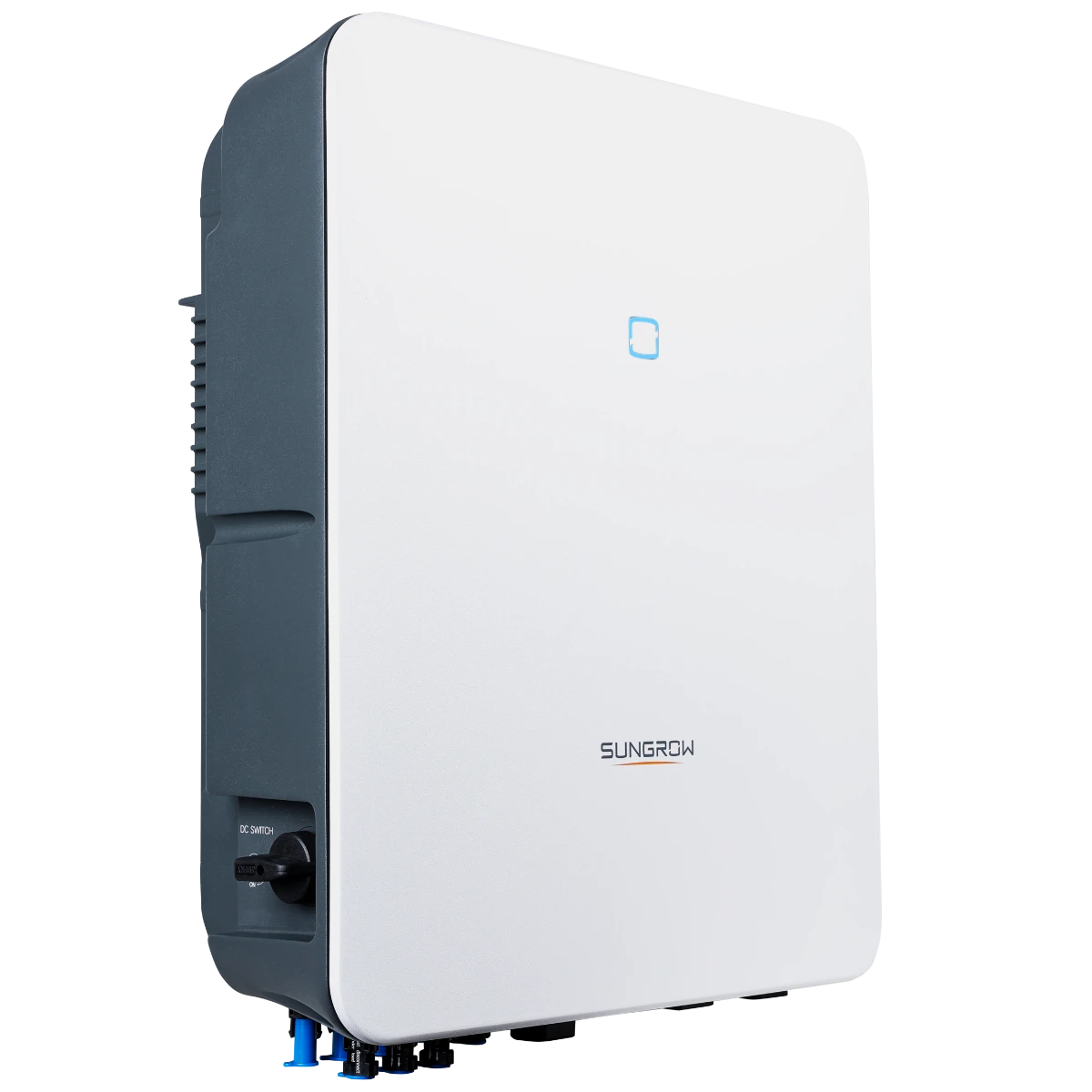

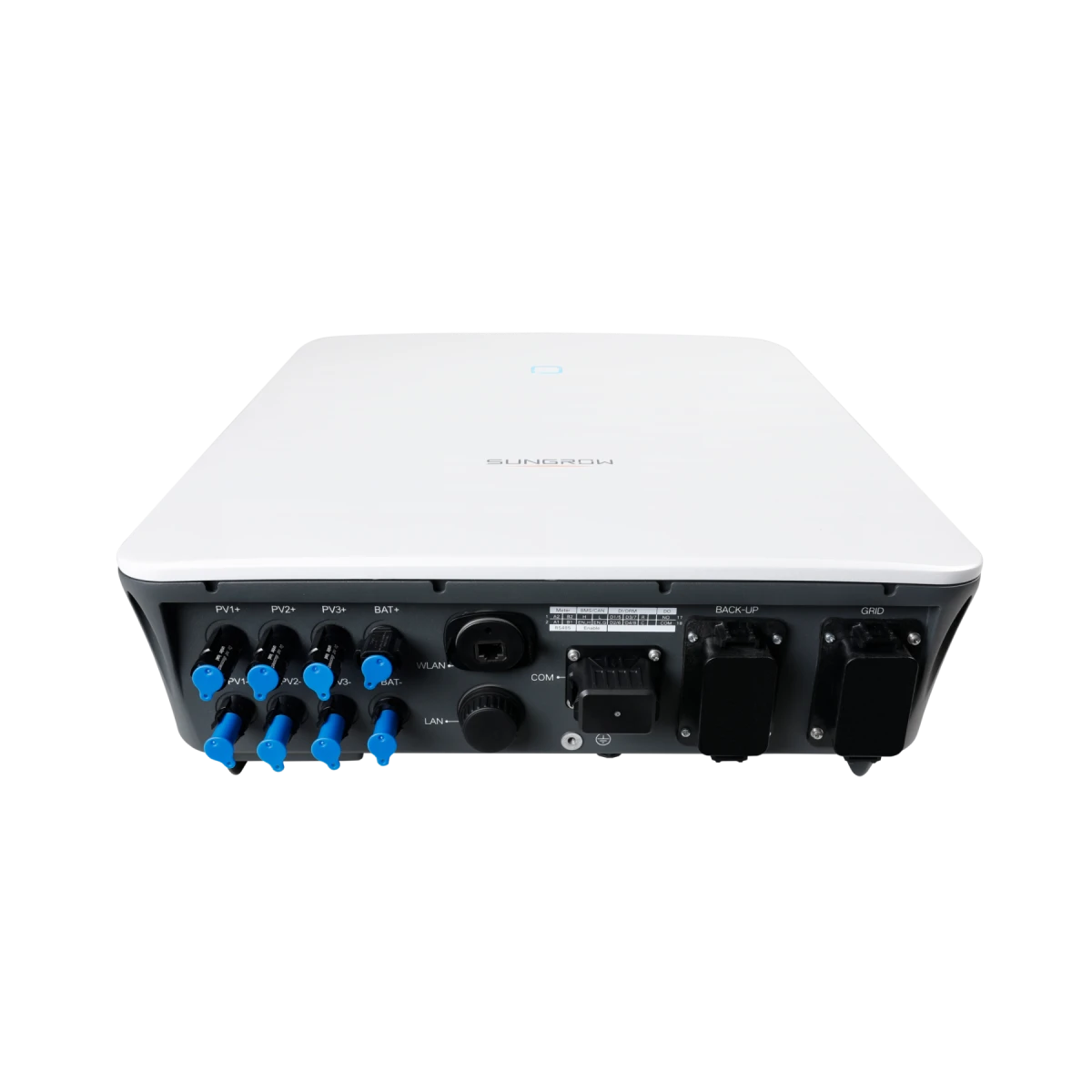

SUNGROW SG20.0RT

Save 10%
(0)

1 In Stock

£1.00 £0.90
Quantity
Total price: £1.00
Tax: incl.
Details Description

Description

Output AC

  • max power – 20kW
  • Max current - 31,9 A
  • Rated AC voltage:
    3 / N / PE, 220 / 380 V
    3 / N / PE, 230 / 400 V
    3 / N / PE, 240 / 415 V
  • AC voltage range - 180V - 276V / 311V - 478V

Input DC

max. Power- 30 kWp

  • Max input voltage - 1100 V
  • Max. current - 37.5 A (25 A / 25 A)
  • Min. PV input voltage / Start-up input voltage - 180V / 180V
  • MPP voltage range - 160-1000 V
  • Number of independent MPP inputs - 2
  • No. of PV strings per MPPT - 2/2

System

  • Degree of protection - IP 65
  • Dimensions (W x H x D) - 370 x 480 x 195 mm
  • Weight - 21 kg
  • Communication - Ethernet / WLAN / RS485 / DI / DO
  • PV connection type - MC4 (max. 6 mm²)
  • AC connection type - Plug and play





General information



EASY AND USER FRIENDLY

–   Unique push-in connectors
–   Fast and easy commissioning via App

SAFE AND DURABLE
–   Quick arc fault circuit interrupter
–   Build-in Type II DC & AC SPD
–   High anti-corrosion rating C5

SMART MANAGEMENT
–   Smart IV curve scanning
–   24 / 7 Live monitoring
–   over the air firmware updates

HIGH YIELD
–   Lower startup & wider MPPT voltage
–   Compatible with bifacial modules
–   Built-in PID recovery function
