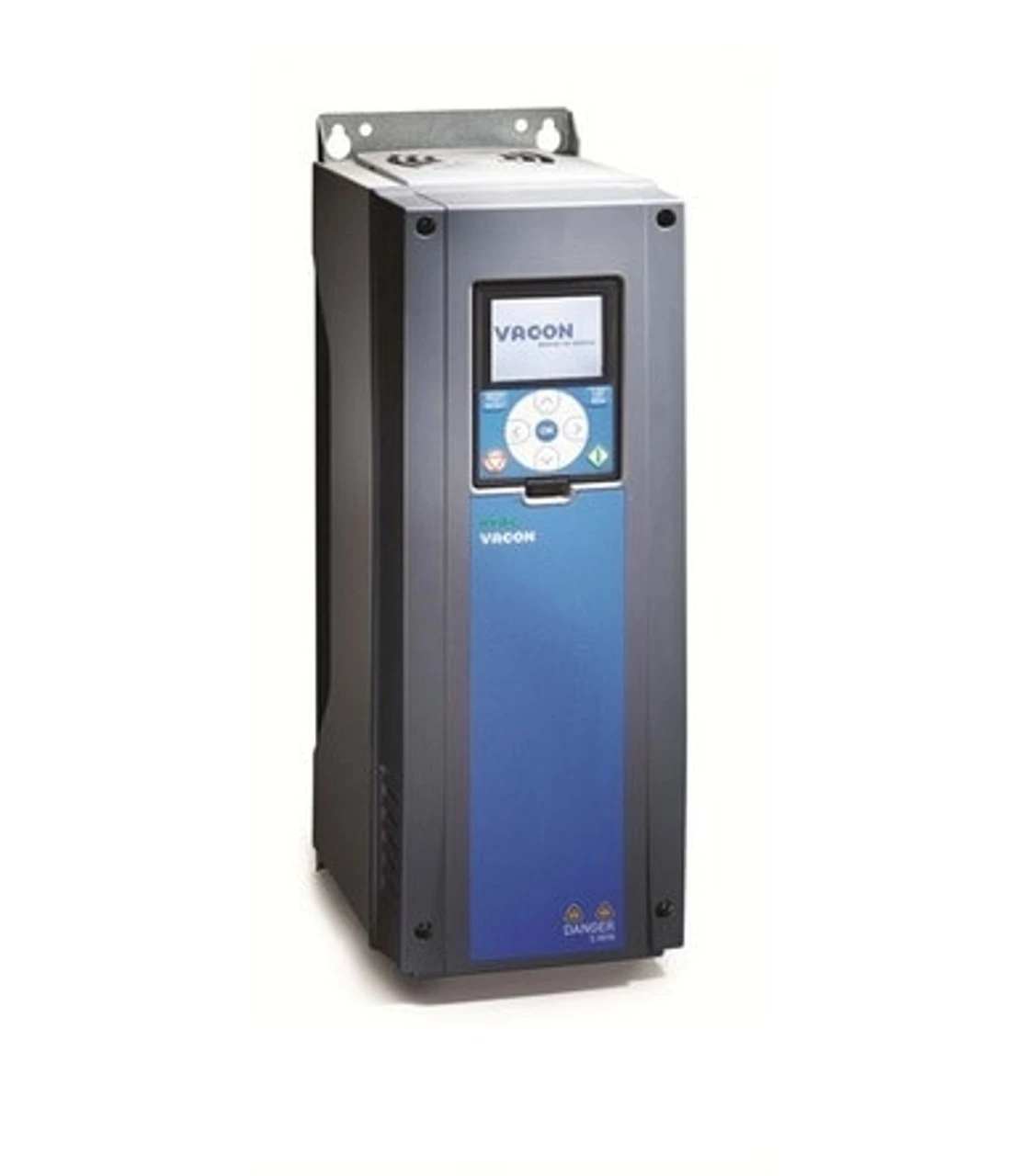

VACON 100 - 200 KW

VACON 100 - 200 KW

(0) 0 Reviews 0 Orders 0 Wish listed

£8.00 ~~£10.00~~

Quantity:

Total price :

(Tax : )

Overview
Reviews

200 KW

Description

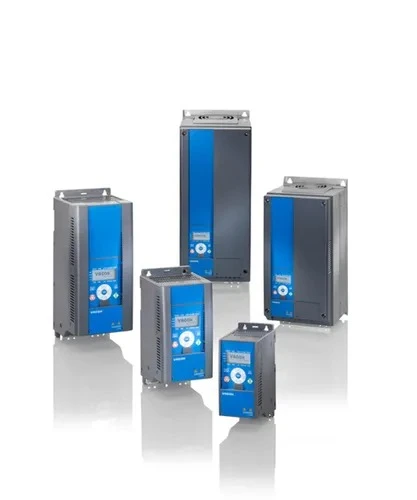

VACON 100 Range

VACON 100 is a multipurpose drive that can be used in hundreds of different applications. Its versatility is what sets it apart from competitors, and the features it contains are designed to make it easy to run and maintain. Built-in Ethernet allows for easy integration to plant automation and VACON Live means the user can commission, maintain and monitor performance remotely. The drive can be customized for all kinds of purposes to ensure you get the most out of it, whatever the environment you need it for.

Features

Built-in Modbus TCP and Modbus RTU. Profinet I/O or Ethernet/IP as software option
Integrated Safe torque off (STO) option, Safe Stop and ATEX thermistor protection
EMC compliance with integrated RFI filter.
Integrated DC chokes
Conformal coating
Compact IP54/UL Type 12 with same footprint as IP21/UL Type 1
Flange mounting
Side by side mounting for IP54/UL Type 12
Standard I/O + 3 free slots
Fieldbus options, integrated PLC capability
High efficiency >97% + energy optimization
Energy counter
Real time clock with calendar based functions
Optimized control of cooling fan
Drive Optimizer for adapting functionality

Benefits

Compliance with global standards and approvals
Easy integration into plant automation
All-in-one package – no additional accessories required
Easy and cost effective commissioning, installation and monitoring
Suitable for wide installation needs
Wide power range 0.55 kW to 200 kW

General information

Application:	designed for control of pumps, fans, compressors, blowers..
Frame:	MR9
Low/High Loadability:	110%
Power:	200kW (110% 1min/10min)
Current:	385A (110% 1min/10min)
Voltage:	380 ÷ 500VAC
Input:	2 x AI 6 x DI 10V, ref. 24V in
Output:	1 x AO 3 x RO 2 x RO + TI 2 x 24V out Built in modules: Modbus TCP/IP, BACnet IP, PROFINET, EtherNet/IP
Braking Chopper:	integrated
DC Choke:	integrated
Emissions:	EMC class 2
Protection Class:	IP21
Dimensions (W X H X D):	480 x 1150 x 365mm
Weight:	120kg
Approvals:	SIL3, DNV -GL, BV, LR, ABS and RINA
