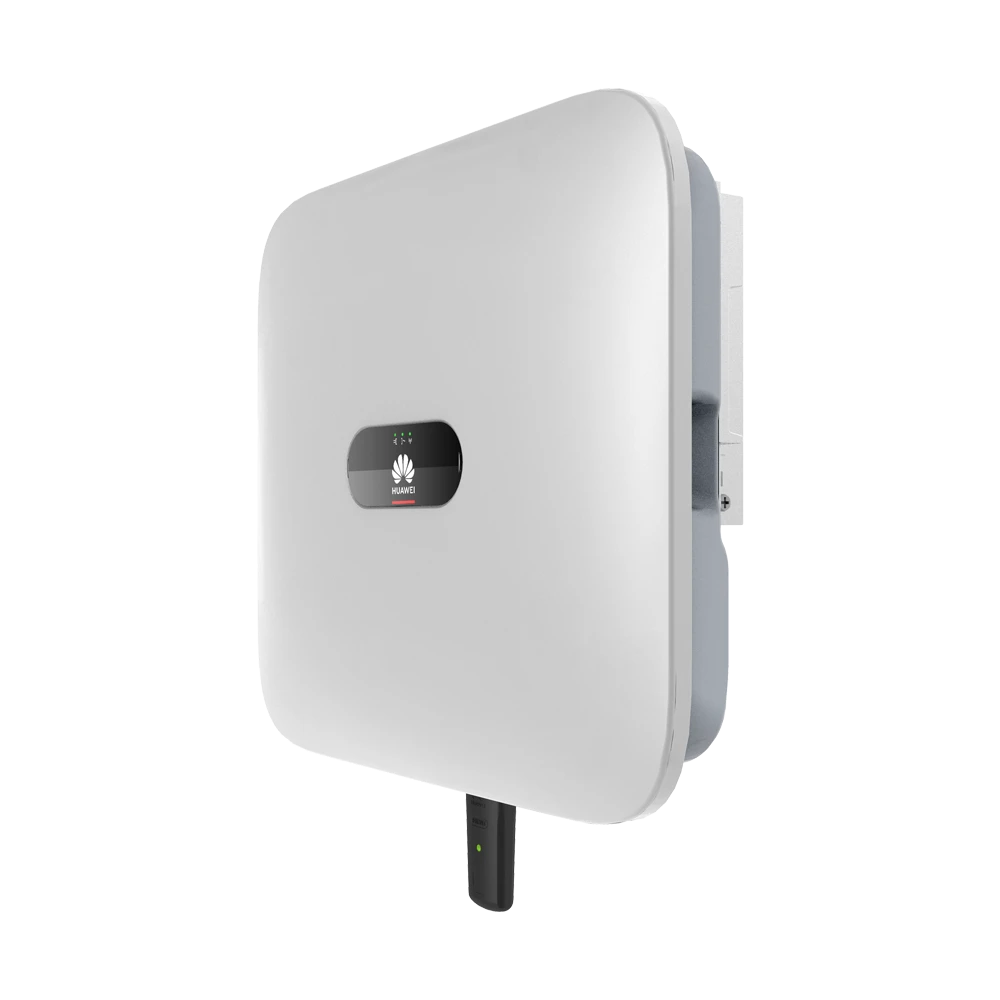

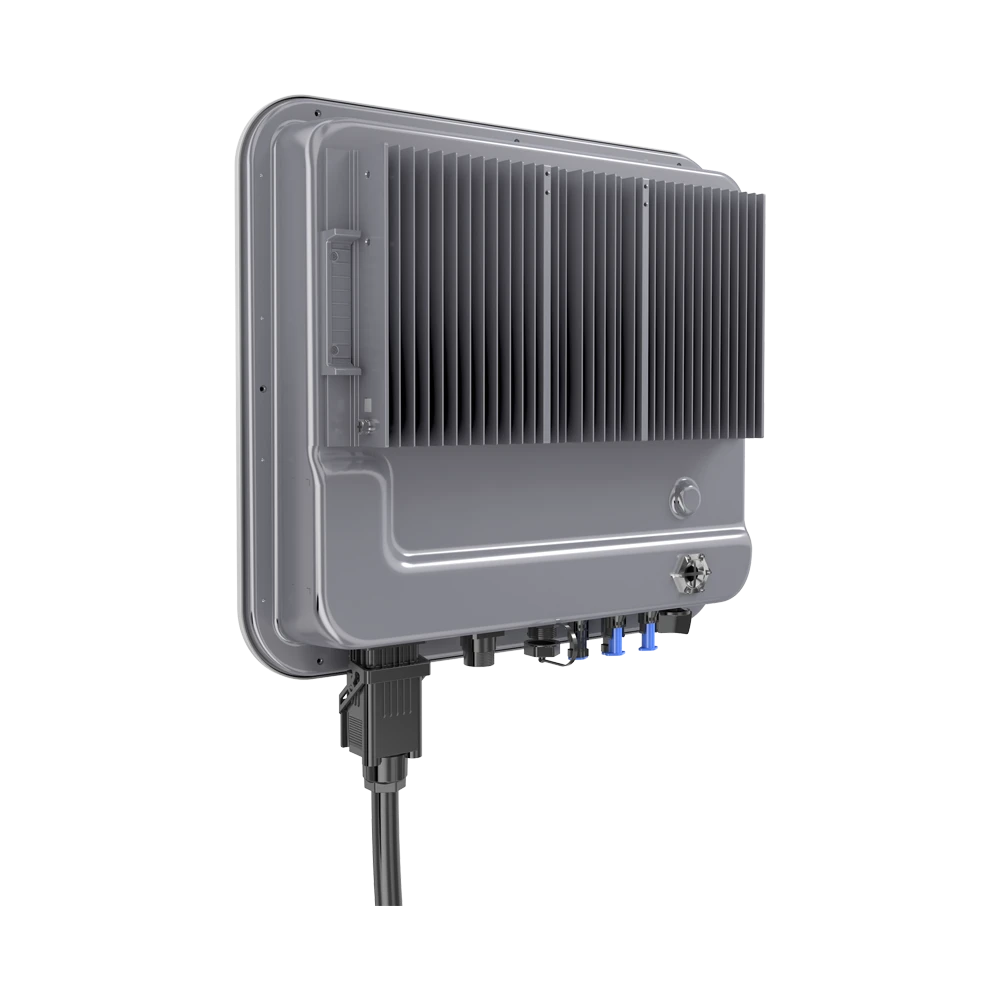

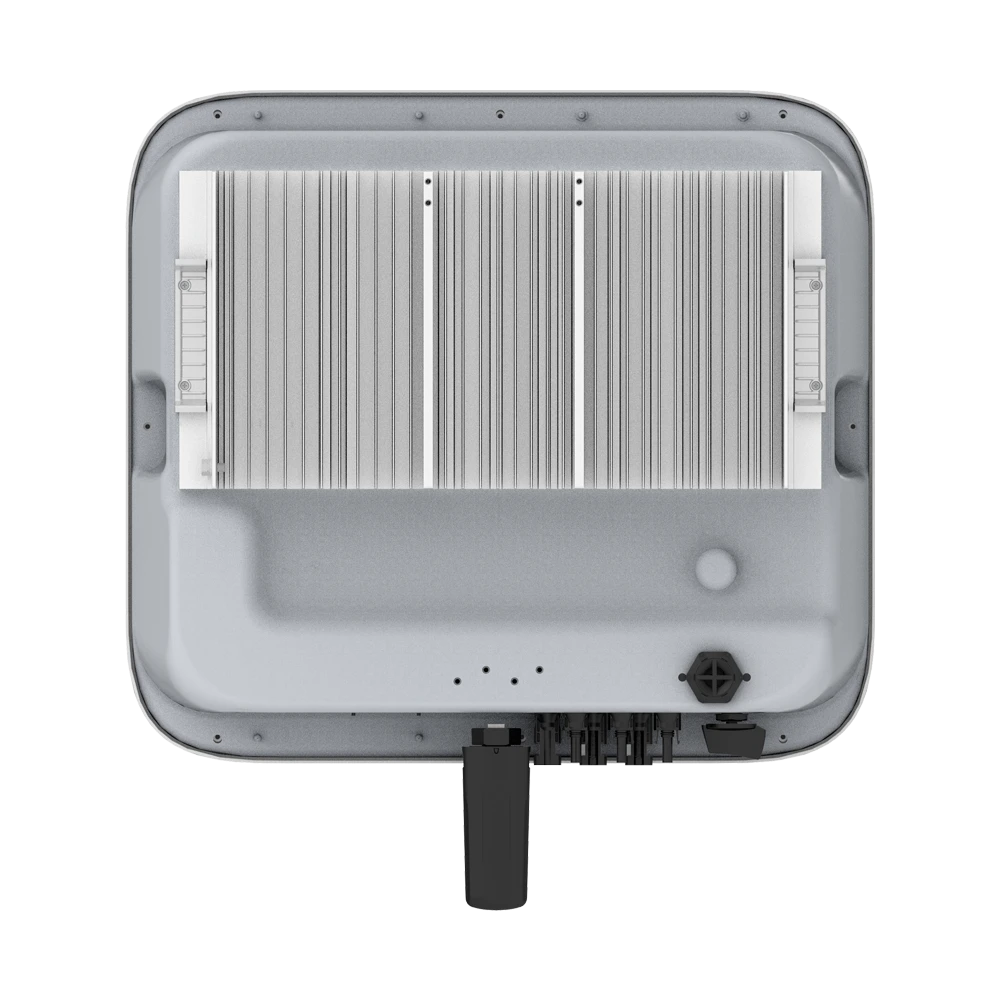

SUN2000-8KTL-M1 HUAWEI OnGrid

Save 10%
(0)

10 In Stock

83,000.0EGP 74,700.0EGP
Quantity
Total price: 83,000.0EGP
Tax: incl.
Details Description

Inverter 8 kW; 2MPPT; 10 years warranty

Max. efficiency

98.2%
Dimensions (incl. mounting brackets)            525 mm x 470 mm x 146.5 mm
Weight (incl. mounting brackets)                          17 kg (37.5 lb)
IP rating                                                                  IP65



Input (PV)

Recommended max. PV power1       12000 Wp
Max. input voltage2

1100 V
Operating voltage range3

140 - 980 V
Startup voltage

200 V
Rated input voltage

600 V
Max. input current per MPPT        13.5 A
Max. short-circuit current        19.5 A
Number of MPP trackers           2
Max. input number per MPP tracker    1



Input (DC Battery)

Compatible battery model         LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1
Operating voltage range            600 - 980 V
Max. operating current

16.7 A
Max. charge power                    10,000 W
Max. discharge power

8800 W



Output (On Grid)

Grid connection             Three-phase
Rated output power 8000 W
Max. apparent power

8800 VA
Rated output voltage      220 V AC / 380 V AC, 230 V AC / 400 V AC, 3 W / N + PE
Rated AC grid frequency               50 Hz / 60 Hz
Max. output current

13.5 A
Adjustable power factor

0.8 leading ... 0.8 lagging
Max. total harmonic distortion         ≤ 3%



Output (Off Grid)

Backup Box      BackupBox-B1
Max. apparent power          3300 VA
Rated output voltage           220 V / 230 V
Max. output current            15 A
Power factor range

0.8 leading ... 0.8 lagging



Protection Feature

Input-side disconnection device           Yes
Anti-Islanding protection                     Yes
DC reverse polarity protection             Yes
Insulation monitoring                           Yes
DC surge protection               Yes,compatible with TYPE II protection class according to EN/IEC 61643-11
AC surge protection             Yes,compatible with TYPE II protection class according to EN/IEC 61643-11
Residual current monitoring                 Yes
AC overcurrent protection                    Yes
AC short-circuit protection                   Yes
AC overvoltage protection                    Yes
Arc fault protection                               Yes
Ripple receiver control                     Yes

Battery charging from grid General Specification

 Yes
Operating temperature range                       -25 °C to +60 °C (-13 °F to +140 °F)
Relative operating humidity                         0% - 100% RH
Max. operating altitude                      4000 m (13,123 ft.) (Derated above 2000 m)
Cooling                                          Natural convection
Display                                 LED Indicators; Integrated WLAN + FusionSolar App
Communication

RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G/3G/2G via Smart Dongle-4G (Optional)
Nighttime power

< 5.5 W



Optimizer Compatibility

DC MBUS compatible optimizer

SUN2000-450W-P2, SUN2000-600W-P

Standards Compliance (More Available Upon Request)



Safety

EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116

Grid connection standards

G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA
